Raise3D Industrial PET CF Filament 2.5 kg
Color: Black (PMS: Black 6 C/RAL 7016)
Specifications: 1.75 mm/ 2.5 kg
Raise3D Industrial PET CF is a carbon fiber-reinforced composite filament based on PET (Polyethylene terephthalate). Well-dispersed 15wt% carbon fibers enhance the rigidity, strength, heat and chemical resistance of the PET matrix. After annealing, PET CF stabilizes its heat resistance at around 150ºC and tensile modulus and strength of over 6 GPa and 80 MPa respectively. Compared to carbon fiber-reinforced Nylon filament, the high printability, dimensional stability, high creep resistance and low moisture absorption makes PET CF an ideal choice for reliable carbon fiber composite printing for strong and cost-effective end-use applications, such as jigs. fixtures, functional parts.

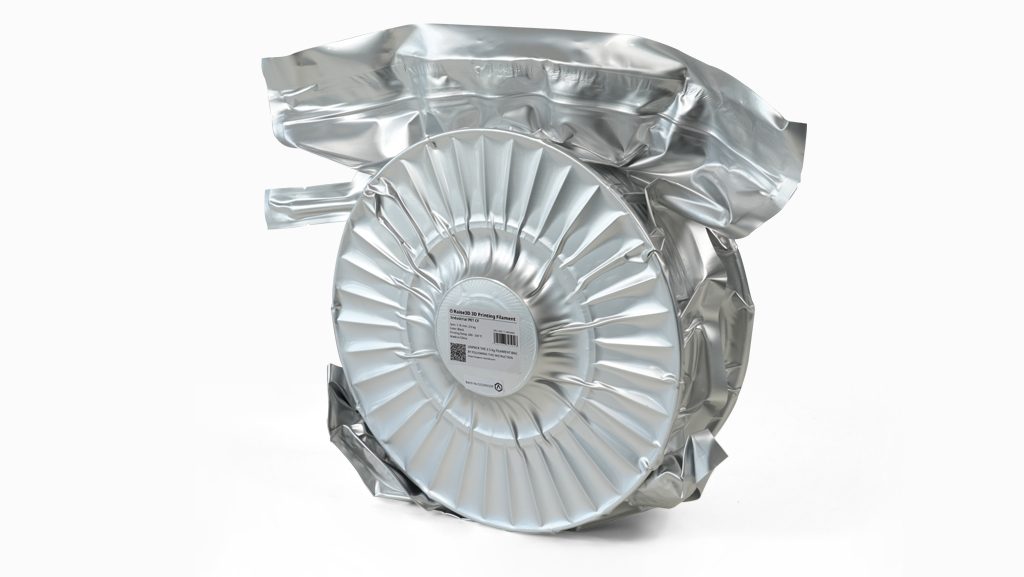

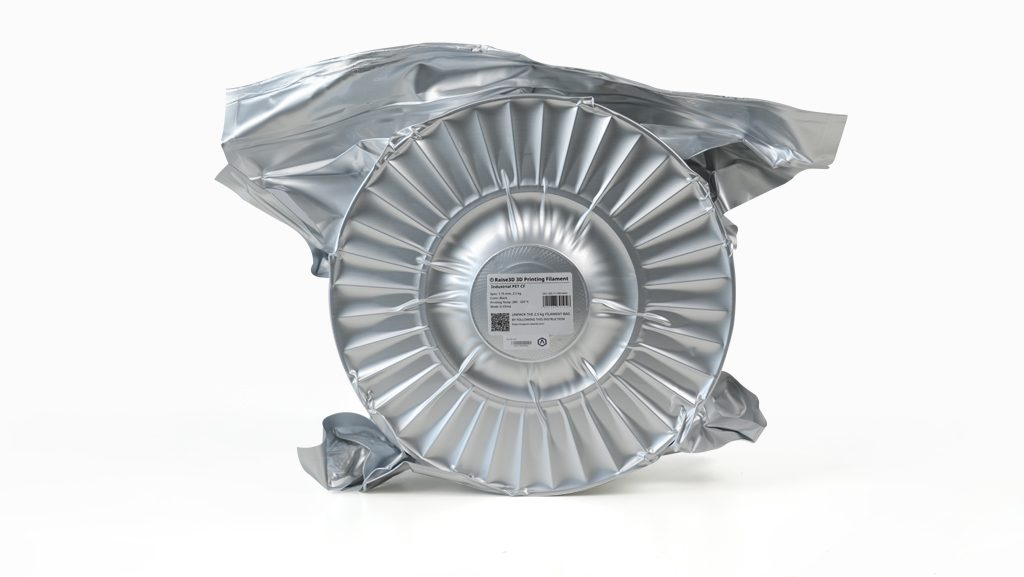

2.5 kg filament allows for uninterrupted batch printing and continuous printing for large models. It is provided inside a sealed dry storage bag, and the filament outlet and shaft ensure the printer smoothly loads the filament while also keeping the filament dry.
Users can install the 2.5 kg filament directly inside the Raise3D RMF500 filaments cartridges. For instructions on how to unpack and load this filament, please refer to the How to Unpack the 2.5 kg Filament Bag Manual.
Benefits of 2.5 kg Filament:
- Uninterrupted long-term batch printing
- Continuous printing for large models
- Simplified operation with less filament change
- Filament bag keeps the filament dry
This filament is compatible with Raise3D Industrial PET Support Filament.
*Due to the higher carbon fiber content of PET filaments, when printing PET CF, an extra wear-resistant nozzle and extrusion system are required for a consistent printing performance. The RMF500 are specially designed for printing high-performance fiber-reinforced composite filaments. As such, it is recommended to use the Raise3D Industrial PET CF filament exclusively on the RMF500.
RoHS – Certificate of Compliance
How to Import Slicing Profile to ideaMaker
Prices may vary by region.
Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.
