Raise3D RMF500

A Large Volume Industrial-Grade Hyper FFF 3D Printer Built for Uninterrupted Productivity

Raise3D RMF500 is a reliable and precise industrial 3D printer that produces small batch customized part with high repeatability. It inherits Raise3D’s proven expertise in FFF technology and polymer material science. Raise3D RMF500 has a large build volume of 500 x 500 x 500 mm and a maximum printing speed of 500 mm/s, making it an ideal choice for industrial manufacturing.

  • High Productivity with Large Build Volume
  • Engineered for High Repeatability and Precision
  • Designed for Uninterrupted Production
  • Diversified High-Performance Engineering Materials
  • More Open
  • More Affordable
Request Demo Request More Info Download TDS Watch Video

A Truly Productive Workhorse with a Large Build Volume

Featuring an impressive build volume of 500 x 500 x 500 mm, with its independent dual electric nozzle powered by Hyper FFF technology, the Raise3D RMF500 stands as a productivity leader for printing large size parts and low volume production. With a maximum linear speed of 500 mm/s* and a maximum acceleration of 15,000 mm/s2*, two times faster than the general industrial printers, the RMF500 stands as a true productivity leader.

*Test data from Raise3D Lab

Print Demo Learn Hyper FFF®
Carbon Fiber Wheel

Carbon Fiber Wheel

  • Printing Filament: PET CF
  • Model Size: 416 x 416 x 138 mm
  • Model Weight: 1503 g
  • Layer Height: 0.25 mm
  • Print Time: 117 h 30 min
  • Application: Prototyping
  • Requirements:

Large Dimensions, Large Mass, High Strength, Precision and Surface Quality

Automotive Linkage Arm

Automotive Linkage Arm

  • Printing Filament: Hyper Speed ABS V2
  • Model Size: 130 x 450 x 225 mm
  • Model Weight: 369 g
  • Layer Height: 0.25 mm
  • Print Time: 30 h
  • Application: Prototyping
  • Requirements:

High Strength, Precision and Durability

Handheld Tool Fixture

Handheld Tool Fixture

  • Printing Filament: PET CF
  • Model Size: 326 x 273 x 400 mm
  • Model Weight: 573 g
  • Layer Height: 0.25 mm
  • Print Time: 46 h 46 min
  • Application: Jigs and Fixtures
  • Requirements:

Ergonomically Designed Suspension Structure, Light-weight, High Stability and Adaptability

Desktop Fixed Fixture

Desktop Fixed Fixture

  • Printing Filament: Hyper Speed ABS V2
  • Model Size: 360 x 306 x 84 mm
  • Model Weight: 1116 g
  • Layer Height: 0.25 mm
  • Print Time: 33 h 6 min
  • Application: Jigs and Fixtures
  • Requirements:

High Strength, Durability and Precision, Lightweight, Porous Structure, Customization

Engineered for High Reliability and Precision

The Raise3D RMF500 is designed for industrial-grade performance, featuring a robust mechanical structure with components such as a linear motor, an all-steel construction frame, and a high-load Z-axis, ensuring precise printing around the clock.

XY Closed-loop Control Linear Motor Drive System

  • XYZ resolution: 1, 1, 0.09765 micron
  • Linear motors offer higher speed, stability, acceleration and motion accuracy than stepper motors and require less maintenance.
  • Closed-loop synchronous control system ensures that the set values and output values of the device are stable and consistent to achieve the expected printing accuracy.
  • Precise positioning up to ±10 µm even with environmental disturbances and load changes.
All-steel Structure Frame

All-steel Structure Frame

The all-steel frame structure significantly reduces motion-induced vibration, thus ensuring the stability of the RMF500 at high printing speeds, and ultimately delivering the expected production quality.

High-load Z-axis

High-load Z-axis

The high stability platform with a maximum load capacity of over 100 kg enables precise Z-axis motion and ensures consistent layer accuracy. The deflection error is 50% lower than the market average.

*Based on 25 kg load measurement

High Performance Extruder

  • Gear ratio 4.65, up to 65 w extrusion motor, generating 120 N extrusion force
  • Compatible with flexible and rigid filaments for better print quality
  • Dual fans provide rapid cooling
  • Silicon carbide nozzles prevent inaccurate printing due to nozzle wear

Designed for Uninterrupted High Productivity

The Raise3D RMF500 is equipped with IDEX-Independent Dual Extruders, enabling duplicate and mirror printing, effectively reducing print time and enhancing efficiency. Loading 4 x 2.5 kg filaments simultaneously can sustain normal operation for at least a full working week (5 days). The design of automatic filament switching and filament dry storage bags ensures continuous high-speed printing without downtime.

IDEX-Independent Dual Extruders

  • Provides duplicate and mirror printing mode
  • Enables simultaneous printing of two different materials
4 x 2.5 kg Filaments System

4 x 2.5 kg Filaments System

Meet 24/7 production needs without frequent material supply, guaranteeing at least one week’s work cycle.

Filament Dry Storage Bag

Filament Dry Storage Bag

  • No additional costs
  • Simplicity and convenience in operation
  • Long-lasting dryness to prevent print failures
2-in-1 Automatic Filaments Switching

2-in-1 Automatic Filaments Switching

  • Filament Run-out Detection
  • Automatic switching between primary and backup filaments

Automatic Nozzle Wiping

When heated and ready, the nozzle automatically moves to clear overflow into a waste box, replacing manual wiping.

Magnetic Printing Platform

Magnetic Printing Platform

  • Effortless support removal and cleaning
  • After cleaning, no residue remains
  • Extended lifespan compared to PEI film

Diversified High-Performance Engineering Materials

Learn Filaments Learn OFP

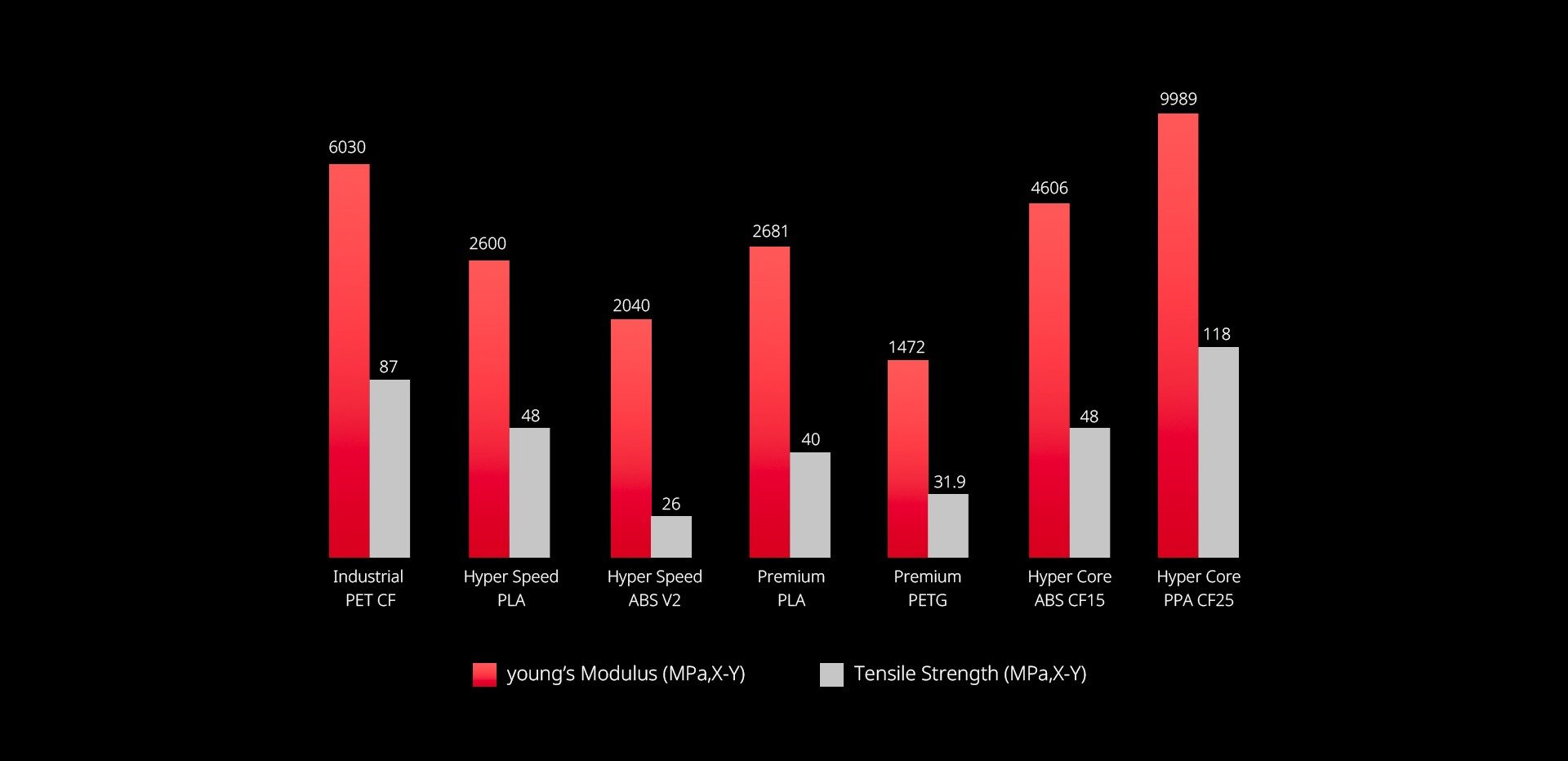

Filaments Strength Performance

Filaments Strength Performance

Shop Filaments

















































































More Open

The Raise3D RMF500 offers an OFP (Open Filament Program), catering to a wider range of industrial printing needs. Equipped with the powerful slicing software, ideaMaker, the RMF500 allows users to customize parameter templates and optimize parameters more suitable for 3rd-party filaments, ensuring highly precise printing outcomes. The provided 4 filament dry storage bags enable easy replacement of different 3rd-party filaments. The open design of the RMF500 paves the way for innovation and meets the diverse needs of a broad spectrum of industries.

OFP (Open Filament Program)

OFP (Open Filament Program)

The OFP (Open Filament Program) is a collaboration between Raise3D and Filament Manufacturers to identify and select top-performing filaments forRaise3D eco-system.

Learn More
Open Accessories

Open Accessories

Inadequate drying of 3rd-party filaments can diminish material quality, leading to compromised print results or even failures. RMF500 includes 4 filament dry storage bags as accessories, ensuring optimal performance for 3rd-party materials.

Open Profile Parameters

Open Profile Parameters

  • Offers profile templates for various Raise3D filaments
  • Offers profile templates for Open Filament Program
  • Offers profile parameters for 3rd-party filaments

See All the Raise3D Printers

















Specification

  • Machine Size (W x D x H): 1340 x 990 x 2370 mm (52.8 x 39 x 93.3 inch)
  • Build Size: 500 x 500 x 500 mm (19.7 x 19.7 x 19.7 inch)
  • Printing Speed: ≤500 mm/s
  • Print Head Acceleration: ≤15000 mm/s2
  • XYZ Positioning Resolution (XYZ Step Size) : 1, 1, 0.09765 micron
  • Extrusion System: IDEX
  • Maximum Build Platform Temperature: 110°C
  • Extruder Maximum Heating Temperature: 330°C
