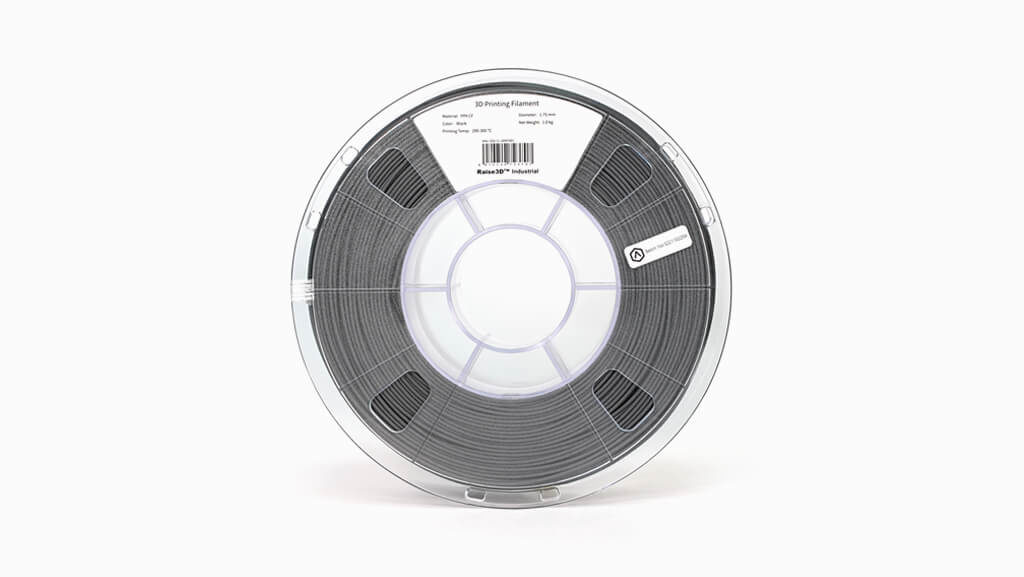

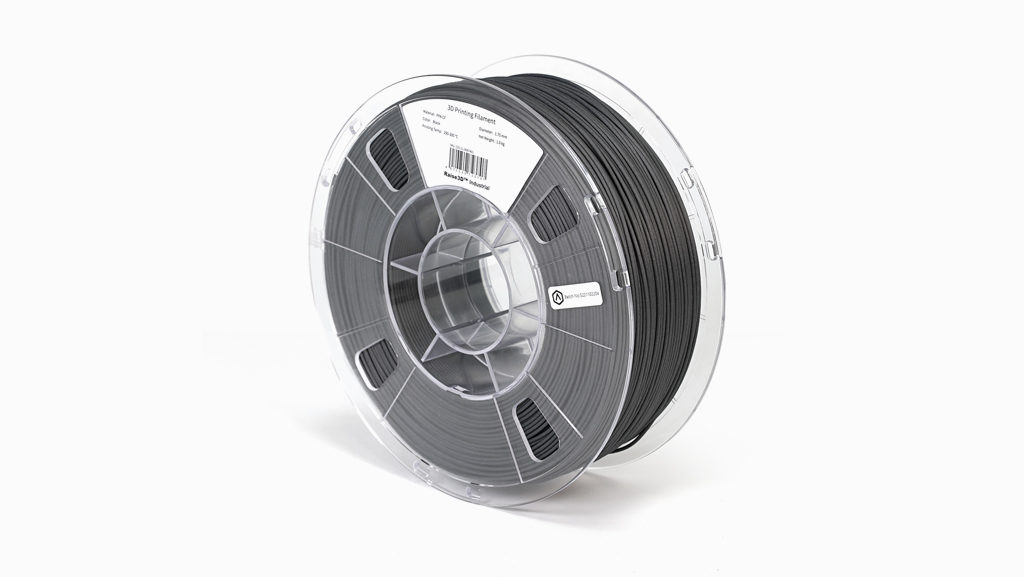

Raise3D Industrial PPA CF Filament
Color: Black (PMS: Black 7C)
Specifications: 1.75 mm/ 1 kg
Raise3D Industrial PPA CF Filament is a carbon fiber-reinforced composite filament material based on PPA (polyphthalamide or high-performance/high-temperature Nylon). Thanks to its high-performance Nylon matrix, this composite filament has superior mechanical and thermal properties when compared to other Nylon filaments. With well controlled dispersion and length-distribution of chopped carbon fibers (15 wt.%), PPA CF has lower density, lower moisture absorption, high strength and rigidity, high wear and creep resistance, and excellent chemical and heat resistance. It is promising for end-use applications in the automotive, aerospace, electrical and electronics (E&E) industries.
This filament is compatible with Raise3D Industrial PPA Support Filament.
Please find the slicing profiles of Raise3D Industrial PPA CF Filament below:
E2CF: Speed – Standard – High Quality
Pro3 Series/ Pro2 Series/ E2/ N Series: N/A
*Due to the higher fiber content of PPA filaments, when printing PPA CF and PPA GF, an extra wear-resistant nozzle and extrusion system are required for a consistent printing performance. The E2CF and the RMF500 are specially designed for printing high-performance fiber-reinforced composite filaments. As such, please use the Raise3D Industrial PPA CF filament and PPA GF filament exclusively on the E2CF and the RMF500.
* There is currently a transition between the previous and the new packages. Product with previous or new package will be shipped randomly.
RoHS – Certificate of Compliance
How to Import Slicing Profile to ideaMaker
Prices may vary by region.
Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.
